sMayaUSD

This catalog includes operators that work with MayaUSD.


MayaUsdExport

Node UI

Exports the objects from the Maya scene to USD. If roots are given, those nodes will be exported. If a valid frame range is provided, then the animation is exported too. Works for Maya.

Inputs

Name Type Default Options
filepath FileOut
stripNamespaces Bool False
usdFormat Enum usdc usda, usdc
jobContext Enum None None, Arnold
roots List []
startFrame Float 0.0
endFrame Float 0.0
shadingExportMode Enum None None, pxrRis, useRegistry
subdivisionScheme Enum None (Polygonal Mesh) None (Polygonal Mesh), Catmull-Clark, Bilinear, Loop

Outputs

Name Type Default
filepath FileOut

MayaUsdImport

Node UI

Imports the objects from USD to Maya geometry. If animatedData is set to True, it will import the animation too. Otherwise, the animation won't be imported. If parent object is given, the imported geometry will be moved inside the parent. In order to import the geometry from a specific variant only, a valid variantPrim, variantSet and variantName need to be provided. Works for Maya.

Inputs

Name Type Default
filepath FileIn
parent String ""
animatedData Bool False
startFrame Float 0.0
endFrame Float 0.0
primVariant String ""
variantSetName String ""
variantName String ""

Outputs

Name Type Default
filepath FileOut
importedNodes List []

MayaUsdMayaReferenceAdd

Node UI

Adds a MayaReference prim. This node works in both the Maya stage shape context or the USD stage context. However, only one of those can be chosen for the operation. If variantSet and variantName are given, the prim will be added only to the specified variant. Otherwise, the prim will be added out of the variant context. Works for Maya.

Inputs

Name Type Default
stageShape String ""
usdStage Instance None
referenceName String ""
prim Instance None
variantSet Instance None
variantName String ""
filepath FileIn
namespace String ""

Outputs

Name Type Default
prim Instance None
referencePrim Instance None

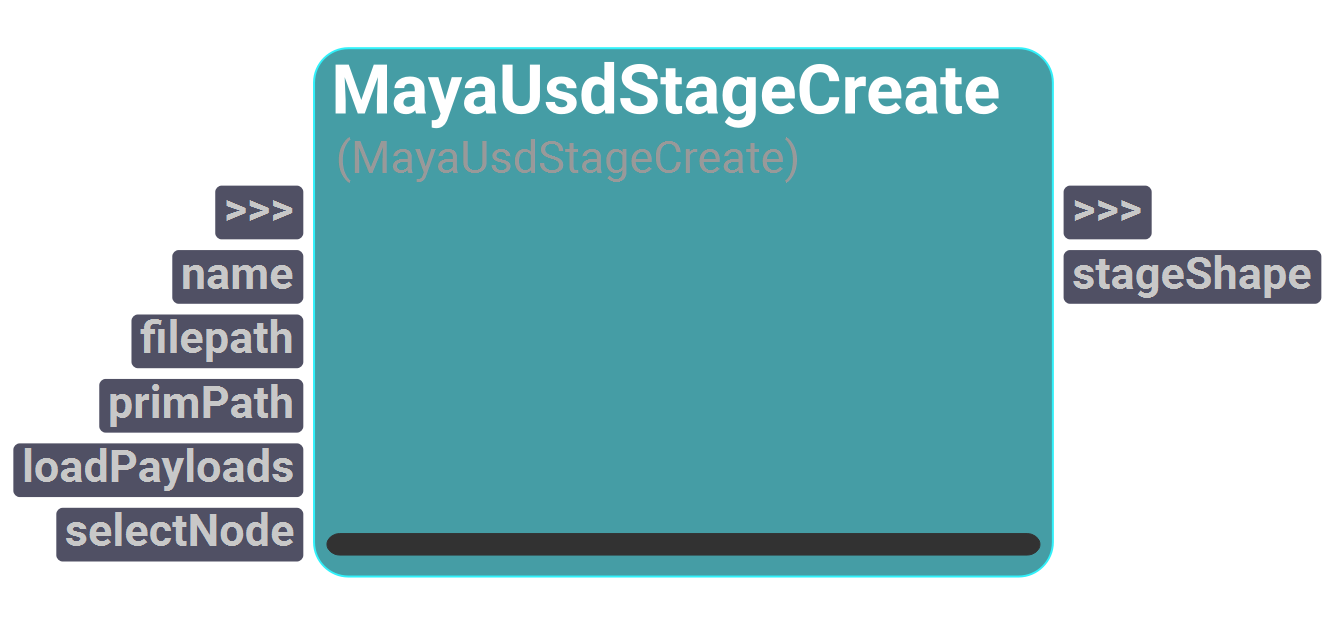

MayaUsdStageCreate

Node UI

Creates a MayaUsdProxyShape node which holds a USD stage which can be interacted with from the DCC. Works for Maya.

Inputs

Name Type Default
name String ""
filepath FileIn
primPath String ""
loadPayloads Bool True
selectNode Bool False

Outputs

Name Type Default
stageShape String ""

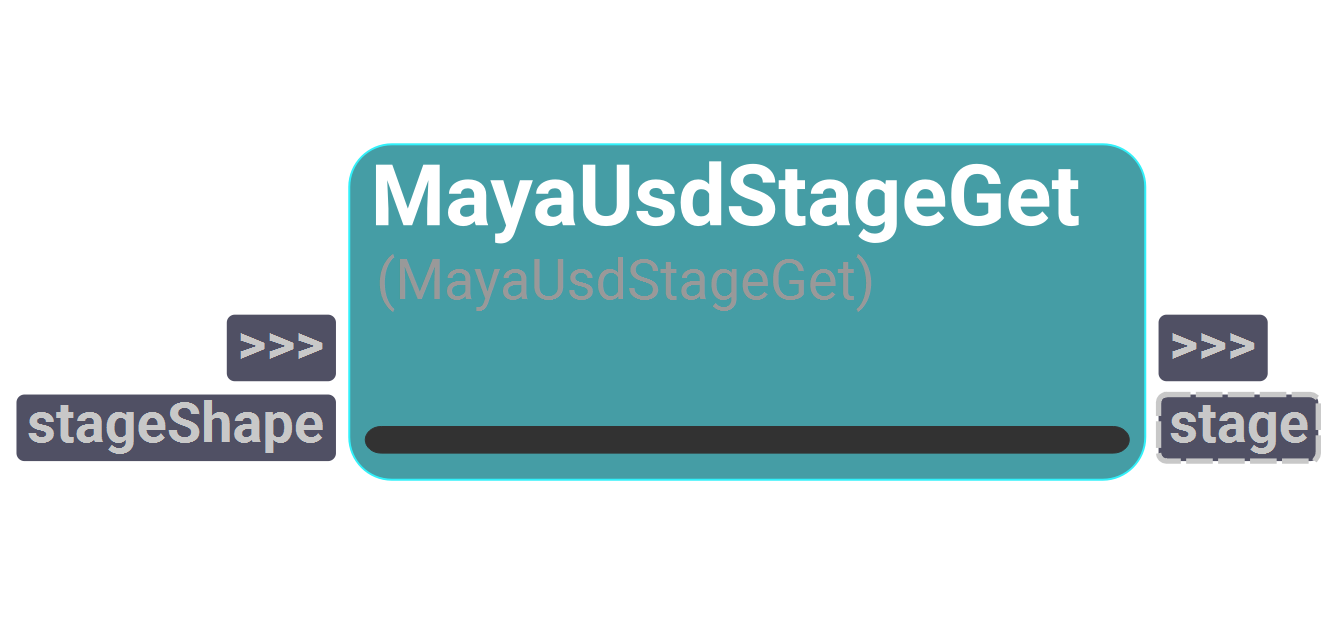

MayaUsdStageGet

Node UI

Gets the underlying UsdStage instance that a MayaUsdProxyShape node is wrapping. Works for Maya.

Inputs

Name Type Default
stageShape String ""

Outputs

Name Type Default
stage Instance None
