fileSystem

A catalog to work with the OS filesystem and environment variables. It includes operators to perform file & directory creation and manipulation and more.

CopyFiles

Operator to copy a given list of files to a target directory. By turning on the preserveMetadata option one can choose to also copy the file's metadata. Optionally one can specify to create the target directory if the one provided does not exist. If the skipOnError option is on, the copying process will continue and will show a warning if an error occurs. If it's off it will stop the copy and raise an error. If the overwrite option is on, the copying process will overwrite the existing files and will show a warning message. If it's off it will ignore the existing files.

Inputs

Name	Type	Default
filesPaths	List	[]
directory	Dir
preserveMetadata	Bool	True
createPath	Bool	False
skipOnError	Bool	False
overwrite	Bool	False

Outputs

Name	Type	Default
copiedFiles	List	[]

CreateDirectory

Operator to create a directory in the provided path. Optionally one can specify to create the path if the one provided does not exist.

Inputs

Name	Type	Default
directoryName	String	""
pathName	Dir
createPath	Bool	False

Outputs

Name	Type	Default
directoryPath	Dir

CreateTempDirectory

Beta operator

Operator to create a temporary directory in the provided path. If no path is provided it will use the default temp directory.

Inputs

Name	Type	Default
pathName	Dir
prefix	String	""
suffix	String	""
createPath	Bool	False

Outputs

Name	Type	Default
directoryPath	Dir

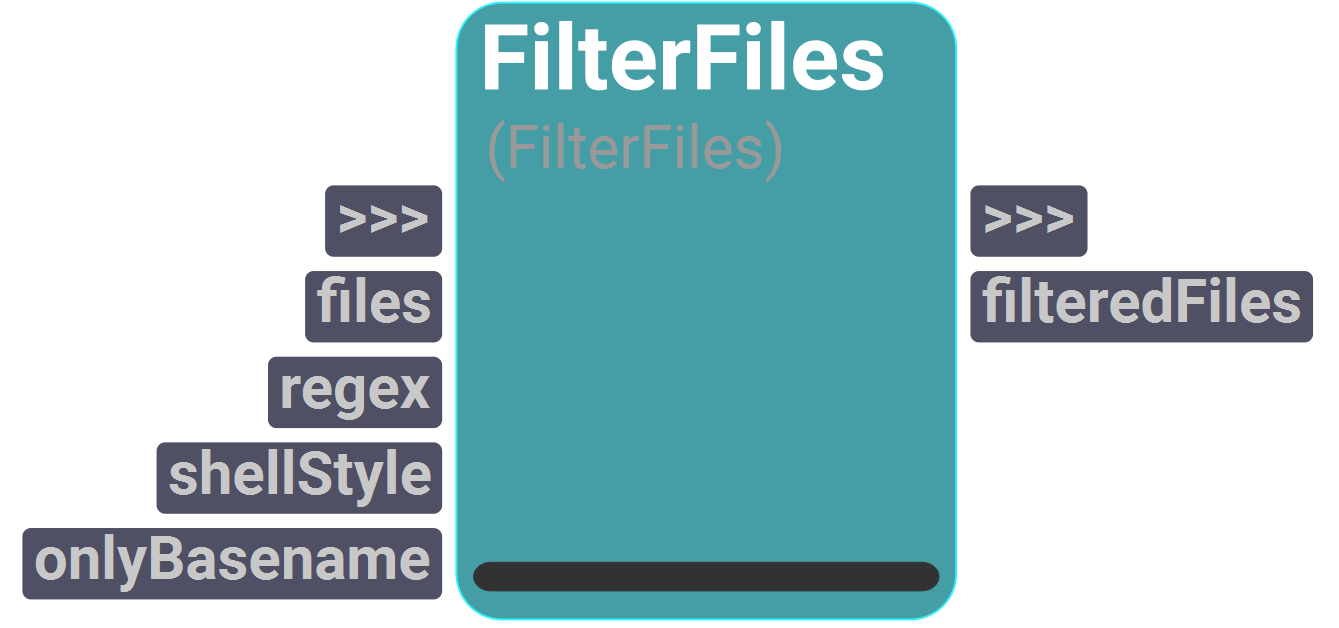

FilterFiles

Filter a list of files using either Python regular expressions format or a shell style matching. By turning the onlyBasename option on, the filter will only filter by the basename of the provided files.

Inputs

Name	Type	Default
files	List	[]
regex	String	""
shellStyle	Bool	False
onlyBasename	Bool	False

Outputs

Name	Type	Default
filteredFiles	List	[]

GetCurrentDirectory

Operator to get the current working directory path. Optionally one can specify to get the absolute or the relative path.

Inputs

Name	Type	Default
relativePath	Bool	False

Outputs

Name	Type	Default
directoryPath	Dir

GetEnvironmentVariable

Operator to get the value of the environment variable provided. If the variable does not exist, the node returns None.

Inputs

Name	Type	Default
name	String	""

Outputs

Name	Type	Default
value	String	""

GetPythonSysPath

Operator to get the content stored in the sys.path variable. Returns a list of strings.

Outputs

Name	Type	Default
pythonSysPath	List	[]

JoinPath

Operator to join the two given paths.

Inputs

Name	Type	Default
mainPath	Dir
addPath	String	""

Outputs

Name	Type	Default
resultPath	String	""

ListDirectory

Operator to list all content inside a given directory path. If requested full paths, it updates the paths to include the directory.

Inputs

Name	Type	Default
directoryPath	Dir
fullPaths	Bool	False

Outputs

Name	Type	Default
content	List	[]

MakeAbsolutePath

Operator that gets the absolute path of the provided path. Optionally one can specify the base directory to the absolute path, by default it is absolute to the current working directory.

Inputs

Name	Type	Default
path	String	""
baseDirectory	Dir

Outputs

Name	Type	Default
absolutePath	Dir

MakeRelativePath

Operator that gets the relative path of the provided path. Optionally one can specify the base directory to the relative path, by default it is relative to the current working directory. The provided path has to be absolute, if not then it will raise an error. The path and the base directory have to belong to the same mounted disk in the system.

Inputs

Name	Type	Default
path	Dir
baseDirectory	Dir

Outputs

Name	Type	Default
relativePath	String	""

MoveFiles

Operator to move a given list of files to a target directory. By turning on the preserveMetadata option one can choose to also preserve the file's metadata. Optionally one can specify to create the target directory if the one provided does not exist. If the skipOnError option is on, the moving process will continue and will show a warning if an error occurs. If it's off it will stop the moving process and raise an error. If the overwrite option is on, the moving process will overwrite the existing files and will show a warning message. If it's off it will ignore the existing files.

Inputs

Name	Type	Default
filespaths	List	[]
directory	Dir
createDirectory	Bool	False
preserveMetadata	Bool	True
skipOnError	Bool	False
overwrite	Bool	False

Outputs

Name	Type	Default
movedFilepaths	List	[]

ReadFile

Operator to read the content from a given file. Optionally the reading mode can be modified. By default, it is in reading mode. The default encoding is utf-8, this can be updated by changing the encoding option.

Inputs

Name	Type	Default	Options
file	FileIn
readMode	Enum	Default	Default, Binary
encoding	String	"utf-8"

Outputs

Name	Type	Default
fileContent	String	""

ReadFileLines

Operator used to read the content from a given file line by line. The result is a list of strings where each element of the list represents one line in the file. Optionally the reading mode can be modified to support binary content. The default encoding is utf-8, this can be updated by changing the encoding option.

Inputs

Name	Type	Default	Options
file	FileIn
readMode	Enum	Default	Default, Binary
encoding	String	"utf-8"

Outputs

Name	Type	Default
fileLines	List	[]

RemoveDirectory

Operator to remove the given directory. By default, if the directory is not empty, the operator will raise an error. Optionally one can force the recursive removal of its content by turning on the removeContent option.

Inputs

Name	Type	Default
directoryPath	Dir
removeContent	Bool	False

RenameFiles

Operator to rename a given list of filepaths with the new names provided by the newFilenames list. If the option overwrite is on and the name of the new file already exists, then it will be overwritten. Otherwise it will show a warning about the filename being duplicated. If the option skipOnError is on and an error occurs while renaming a file, the execution will continue to the next filepath. Otherwise it will raise an error and stop.

Inputs

Name	Type	Default
oldFilepaths	List	[]
newFilenames	List	[]
overwrite	Bool	False
skipOnError	Bool	False

Outputs

Name	Type	Default
outFiles	List	[]

SetCurrentDirectory

Operator to set the current working directory to the path specified. If the createPath option is turned on and the path provided does not exist, it will be created.

Inputs

Name	Type	Default
directoryPath	Dir
createPath	Bool	False

Outputs

Name	Type	Default
currentDirectory	Dir

SetEnvironmentVariable

Operator to set the value of an environment variable. If the environment variable already exists, it will be overwritten.

Inputs

Name	Type	Default
name	String	""
value	String	""

SetFileExtension

Operator to set an extension to a given filename. Optionally one can turn on the replaceExtension option if the filepath already has an extension, this will replace it with the provided one.

Inputs

Name	Type	Default
filepath	FileIn
extension	String	""
replaceExtension	Bool	False

Outputs

Name	Type	Default
newFilepath	String	""

SplitFileExtension

Operator to split a given filename into the root filename and the extension.

Inputs

Name	Type	Default
filename	FileIn

Outputs

Name	Type	Default
root	String	""
extension	String	""

SplitFilePath

Operator that splits the given filepath into two parts: directory contains the last pathname component and basename contains everything leading up to that.

Inputs

Name	Type	Default
filepath	FileIn

Outputs

Name	Type	Default
directory	String	""
basename	String	""

WriteFile

Operator to write the given content to the provided file. Optionally one can turn on the createFile if the provided file does not exist. Otherwise it will raise an error. Optionally the writing mode can be modified. By default it is in writing mode(w).

Inputs

Name	Type	Default	Options
file	FileIn
contents	String	""
writeMode	Enum	Overwrite	Overwrite, Extend, Binary Overwrite, Binary Extend
encoding	String	"utf-8"
createFile	Bool	False

Outputs

Name	Type	Default
writtenFile	FileOut

WriteFileLines

Operator to write the given list of strings to the provided file as individual lines. Optionally one can turn on the createFile if the provided filename does not exist. Otherwise it will raise an error. Optionally the writing mode can be modified. By default it is on overwriting mode. The default encoding is utf-8, this can be updated by changing the encoding option.

Inputs

Name	Type	Default	Options
file	FileIn
contents	List	[]
writeMode	Enum	Overwrite	Overwrite, Extend, Binary Overwrite, Binary Extend
createFile	Bool	False
encoding	String	"utf-8"

Outputs

Name	Type	Default
writtenFile	FileOut
