¶Data Extraction

The Data Extraction Tool is implemented in Houdini as a TOP HDA called AdnMLDataExtraction. This node is used to extract data for training AdonisML models.

Data extraction gathers the input and output data used by the AdonisML training workflow. This HDA is used after the AdnMLDataProcessing HDA has prepared the simulation skin and selected ML joints. The AdnMLDataExtraction TOP HDA reads the processed skin, the rest skin, and the selected joint data, then exports the data required for training AdonisML models.

The joint list used for extraction is expected to come from the processed ML joint output of the AdnMLDataProcessing HDA, usually exposed through a Null node named OUT_JOINTS. This output contains a point group named adnMLJoints, which defines the joints to include in the extracted input data.

Optionally, the AdnMLDataExtraction TOP HDA can also extract muscle activation data. When enabled, this allows the extraction process to include dynamic material properties prediction for AdnSmartTissue support of the trained ML models.

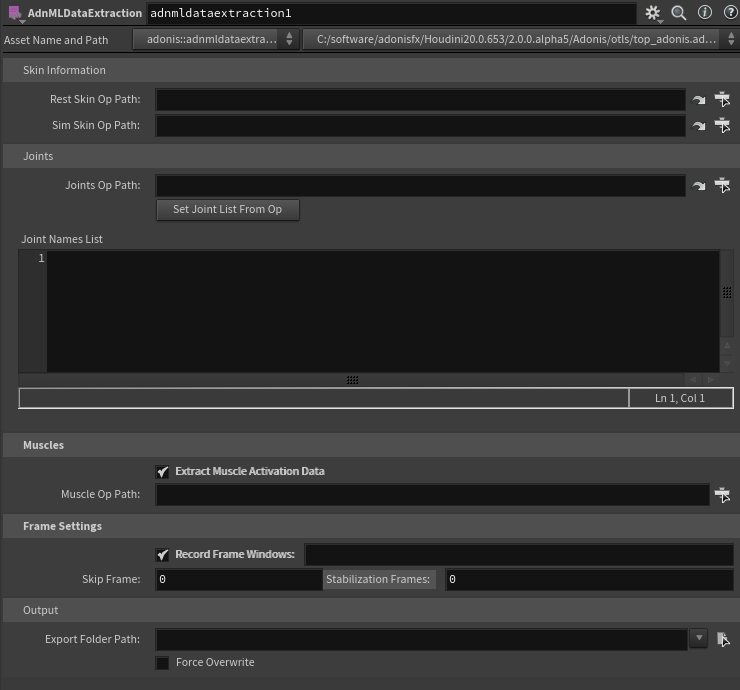

¶UI

¶Skin Information

• Rest Skin Op Path: SOP path to the rest skin geometry.

• Sim Skin Op Path: SOP path to the processed simulated skin generated by the AdnMLDataProcessing HDA. This should usually point to a Null node named OUT_SKIN, connected to the ADN_OUT_SKIN output plug of the processing HDA.

¶Joints

• Joints Op Path: SOP path to the processed ML joints generated by the AdnMLDataProcessing HDA. This should usually point to a Null node named OUT_JOINTS, connected to the ADN_OUT_ML_JOINTS output plug of the processing HDA. This output should contain the selected ML joints stored in the adnMLJoints point group.

• Set Joint List From Op: Finds the adnMLJoints group from the geometry specified in Joints Op Path, then populates and formats the entries in Joint Names List.

• Load Joint List From File: Loads the joint list from the configuration file of a previous data extraction. This can be used to reuse the same ML joint selection registered in the joints.json file from an existing extracted dataset.

• Joint Names List: List of joint names to extract as ML input data. This list is usually populated using Set Joint List From Op.

¶Muscles

• Extract Muscle Activation Data: Enables extraction of muscle activation data. When enabled, the extracted data can support training the ML model on material properties prediction for AdnSmartTissue. If disabled, the extracted data supports training models for AdnMLDeformer only.

• Muscle Op Path: SOP path to geometries that have an AdnMuscle or AdnRibbonMuscle solver affecting them. The recommended setup is to point to a merge node containing all ADN_OUT_ Null nodes coming from the muscle nodes. This can also point to individual muscle output nodes prefixed with ADN_OUT_, muscle geometry SOPs, or muscle solver SOPs.

¶Frame Settings

• Record Frame Windows: Enables the use of specific frame windows for the data extraction process.

• Frame Windows: List of frame windows to record. If empty, the entire playback range is recorded. Frame windows must be defined as separate frame ranges, for example: [[1, 5], [220, 600], [1023, 1500]].

• Skip Frame: Number of frames to skip during recording. This helps reduce redundant pose data and extract more diverse samples. Lower values are recommended for fast animations, while higher values can be used for slower animations. Typical suggested values for normal animation speeds are between 2 and 5. The skip frames will be computed from the start of each frame window, ensuring that the starting frame of each window is always recorded in the dataset.

• Stabilization Frames: Number of times to recook a frame before recording displacement data. This parameter damps the motion inertia in the recorded poses. Higher values make each of the recorded poses lose more dynamics and converge toward a static silhouette. Well stabilized data is required for good ML deformation training. Faster animations usually require more stabilization frames. Typical suggested values for normal animation speeds are between 5 and 10. Increasing this value will increase the export time.

¶Output

• Export Folder Path: Destination folder where the extracted data will be written.

• Force Overwrite: Allows existing extraction data in the output folder to be overwritten.

¶Requirements

To use the AdnMLDataExtraction TOP HDA, the data must first be prepared with the AdnMLDataProcessing HDA.

Set the following parameters:

• Rest Skin Op Path: SOP path to the rest skin geometry.
• Sim Skin Op Path: SOP path to the processed simulated skin. This should usually point to a Null node named OUT_SKIN, connected to the ADN_OUT_SKIN output plug of the AdnMLDataProcessing HDA.
• Joints Op Path: SOP path to the selected ML joints. This should usually point to a Null node named OUT_JOINTS, connected to the ADN_OUT_ML_JOINTS output plug of the AdnMLDataProcessing HDA.
• Joint Names List: List of joints to extract. This list is populated from the adnMLJoints point group found in the joints SOP.
• Export Folder Path: Destination folder where the extracted data will be written.

The rest skin and simulated skin must have the same topology. This means both geometries must have matching point counts and matching point order so the extraction process can compute displacement data correctly.

The geometry specified in Joints Op Path must contain the selected ML joints in the adnMLJoints point group. These joints must also contain the name and transform point attributes required by the extraction process.

The following optional parameter can also be provided:

• Muscle Op Path: SOP path to geometries affected by an AdnMuscle or AdnRibbonMuscle solver. This is required only when Extract Muscle Activation Data is enabled.

¶How To Use

1. Create a TOP network in Houdini, or enter an existing TOP context where the data extraction process will be configured.

2. Create an AdnMLDataExtraction TOP HDA.

3. Set the Rest Skin Op Path to the SOP path of the rest skin geometry.

4. Set the Sim Skin Op Path to the processed simulated skin generated by the AdnMLDataProcessing HDA.

   This should usually point to a Null node named OUT_SKIN, connected to the ADN_OUT_SKIN output plug of the processing HDA.

5. Set the Joints Op Path to the selected ML joints generated by the AdnMLDataProcessing HDA.

   This should usually point to a Null node named OUT_JOINTS, connected to the ADN_OUT_ML_JOINTS output plug of the processing HDA.

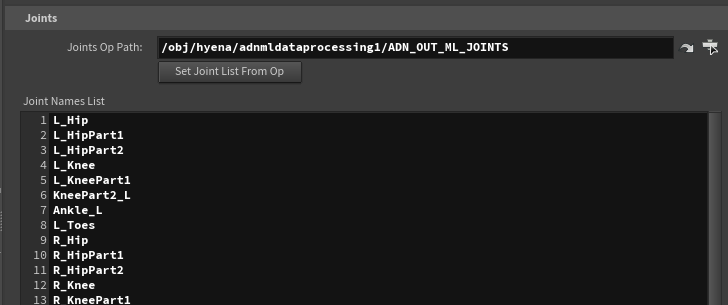

6. Press Set Joint List From Op.

   Pressing this button finds the adnMLJoints point group from the geometry provided in Joints Op Path, then populates and formats the entries in Joint Names List.

   The joints listed in Joint Names List are the joints that will be used as input data for the ML extraction process.

7. Optionally enable Extract Muscle Activation Data.

   Enable Extract Muscle Activation Data if the exported data should support dynamic material properties prediction for AdnSmartTissue.

   When this option is enabled, set Muscle Op Path to the SOP path of the muscle geometry. The recommended setup is to point to a merge node that combines all ADN_OUT_ Null nodes coming from the muscle nodes. This is supported and keeps the extraction input centralized. The path can also point to individual AdnMuscle SOPs, muscle geometry SOPs, or ADN_OUT_ nodes.

   When muscle activation data is extracted, the generated data can support training ML models for AdnSmartTissue. If this input is not provided, the extracted data supports training models for AdnMLDeformer only.

8. Configure the frame settings.

   Use the Frame Settings parameters to define which frames should be recorded during data extraction.

   Enable Record Frame Windows to specify separate frame ranges for the extraction process. Frame windows must be defined as a list of frame ranges, for example: [[1, 5], [220, 600], [1023, 1500]].

   Use Skip Frame to skip frames during recording. This helps reduce redundant pose data and extract more diverse samples. Lower values are recommended for fast animations, while higher values can be used for slower animations. Typical suggested values for normal animation speeds are between 2 and 5. The skip frames will be computed from the start of each frame window, this ensures that the starting frame of each window is always recorded in the dataset.

   Use Stabilization Frames to define how many times each frame should be recooked before displacement data is computed and written. This helps stabilize the simulation dynamics before extraction. Typical suggested values for normal animation speeds are between 5 and 10, but faster animations may require higher values.

9. Set Export Folder Path to the folder where the extracted data should be written.

10. Cook the TOP node.

    Once the paths, joint list, frame settings, and output folder have been configured, cook the TOP node to run the extraction process.

¶Muscle Activation Data Initialization

If the Extract Muscle Activation Data option is enabled, the beginning of the data extraction process will initialize and cache the Adonis muscle setup information. This initialization step might require some time depending on the complexity of the muscle setup and the poly count of the meshes.

¶Cooking and Monitoring the TOP Node

Once the AdnMLDataExtraction TOP HDA has been configured, the extraction process can be launched by cooking the TOP node.

One common way to start the process is to select the AdnMLDataExtraction TOP HDA and use Tasks > Cook Output Node from the TOPs menu. However, the node can also be cooked using any other standard TOP workflow available in Houdini, depending on how the user has configured their TOP network.

While the node is cooking, we recommend inspecting the Task Graph to monitor the progress of the extraction process and to identify possible errors. If a task fails, the Task Graph can be used to inspect which work item produced the error and to help diagnose the issue.

¶Result

After cooking the AdnMLDataExtraction TOP HDA, the extraction process writes the data to the folder specified in Export Folder Path.

The following files are generated in the target export folder:

• inputs.csv: Contains the extracted input data, including the selected joint transforms.
• outputs.csv: Contains the extracted output data, including the simulated skin displacement data and optional data required for AdnSmartTissue material properties prediction.
• joints.json: Contains the exported joint hierarchy information used to associate the joint transform data with the extracted joints.
• extraction_config.json: Contains the configuration used for the extraction process, including the input paths, joint list, frame settings, and export settings.
