¶Locators

Adonis Locators are visualizers that are meant for visualizing and measuring transform nodes which provide valuable input information for setting up the deformers. They can visualize information representing position, distance, or angle as well as velocities or accelerations represented via coloring when used in combination with Sensors.

¶AdnLocatorPosition

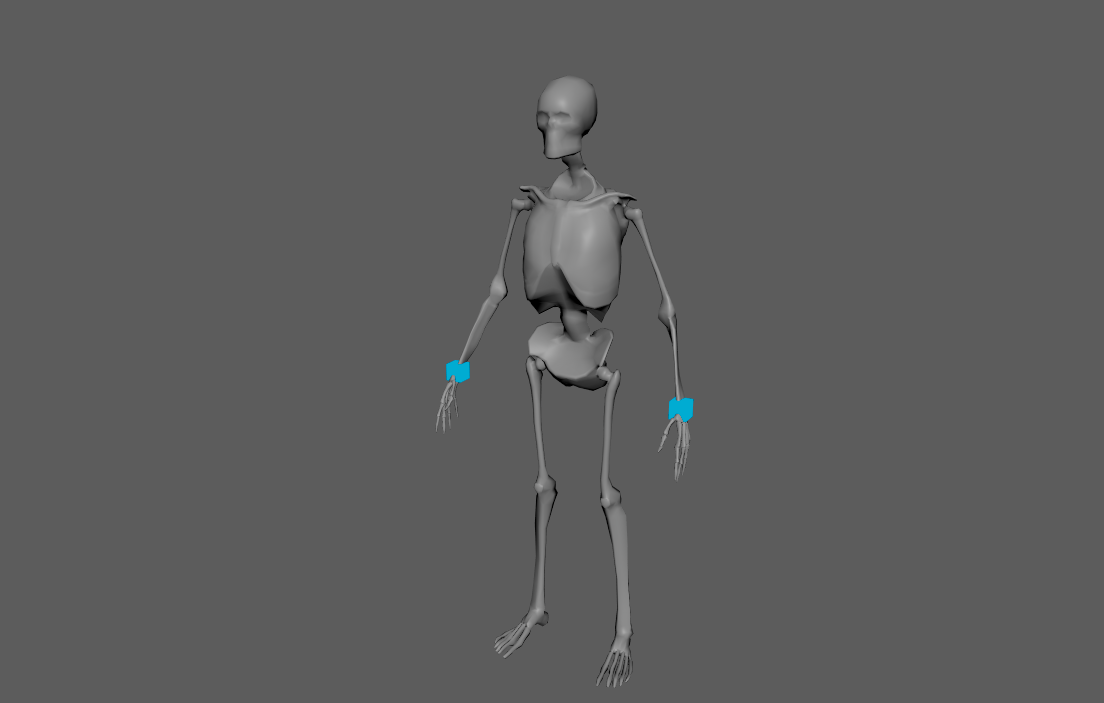

AdnLocatorPosition is the locator for visualizing the position of a single transform node. When connected to its corresponding AdnSensorPosition, velocity or acceleration can be visualized with a color code blue-to-red.

¶How To Use

An AdnLocatorPosition will only visualize the information of the transform node to which it is applied. To be able to read, process and visualize information like the velocity or acceleration an AdnSensorPosition has to be applied.

Only one transform will be required to create the AdnLocatorPosition. The creation process is the following:

1. Select a transform node in the scene.
2. Press the button in the Adonis shelf or press Position in the Adonis menu, under the Locators submenu. If the shelf button is double-clicked or the option box in the menu is selected a window will be displayed where a custom name and initial attribute values can be set.
3. The AdnLocatorPosition is created and ready to be used.

¶Attributes

Input

Activation Values

Draw

¶Attribute Editor Template

¶AdnLocatorDistance

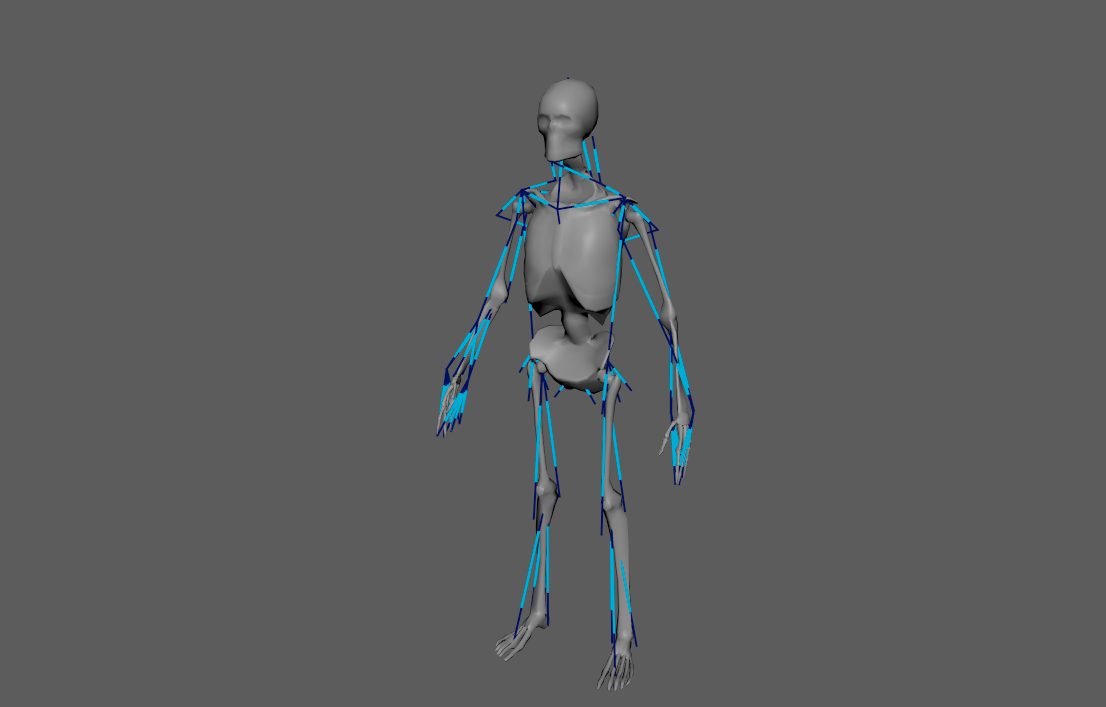

AdnLocatorDistance is the locator for visualizing the distance between two transform nodes. When connected to its corresponding AdnSensorDistance, distance, velocity or acceleration can be visualized with a color code blue-to-red.

¶How To Use

An AdnLocatorDistance will only visualize the information of the distance between two transform nodes to which it is applied. To be able to read, process and visualize information like the distance magnitude, velocity or acceleration an AdnSensorDistance has to be applied.

Two transform nodes will be required to create an AdnLocatorDistance representing each extremity. The creation process is the following:

1. Select two transform nodes in the scene.
2. Press the button in the Adonis shelf or press Distance in the Adonis menu, under the Locators submenu. If the shelf button is double-clicked or the option box in the menu is selected a window will be displayed where a custom name and initial attribute values can be set.
3. The AdnLocatorDistance is created and ready to be used.

¶Attributes

Input

Activation Values

Draw

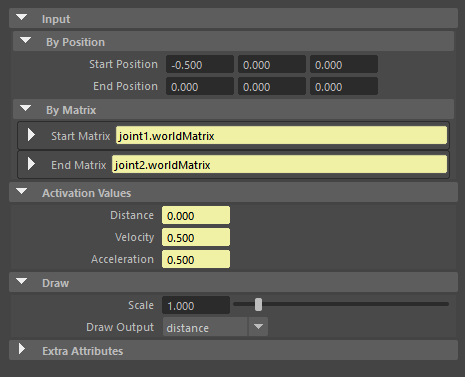

¶Attribute Editor Template

¶AdnLocatorRotation

AdnLocatorRotation is the locator for visualizing the angle between three transform nodes. When connected to its corresponding AdnSensorRotation, angle, angular velocity or angular acceleration can be visualized with a color code blue-to-red.

¶How To Use

An AdnLocatorRotation will only visualize the information of the connections and angle between the three transform nodes. To be able to read, process and visualize information like the angle, angular velocity or angular acceleration an AdnSensorRotation has to be applied.

Three transform nodes will be required to create the AdnLocatorRotation. The creation process is the following:

1. Select three transform objects in the scene. The order in which the objects are selected is relevant, as the created angle will have the following arrangement:
   • First selected object: Start point of the angle.
   • Second selected object: Middle point of the angle.
   • Third selected object: End point of the angle.
2. Press the button in the Adonis shelf or press Rotation in the Adonis menu, under the Locators submenu. If the shelf button is double-clicked or the option box in the menu is selected a window will be displayed where a custom name and initial attribute values can be set.
3. The AdnLocatorRotation is created and ready to be used.

¶Attributes

Input

Activation Values

Draw

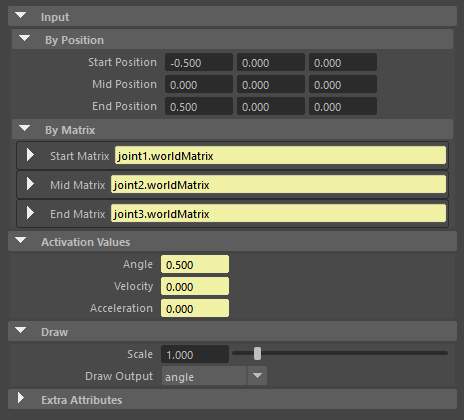

¶Attribute Editor Template

¶AdnLocator

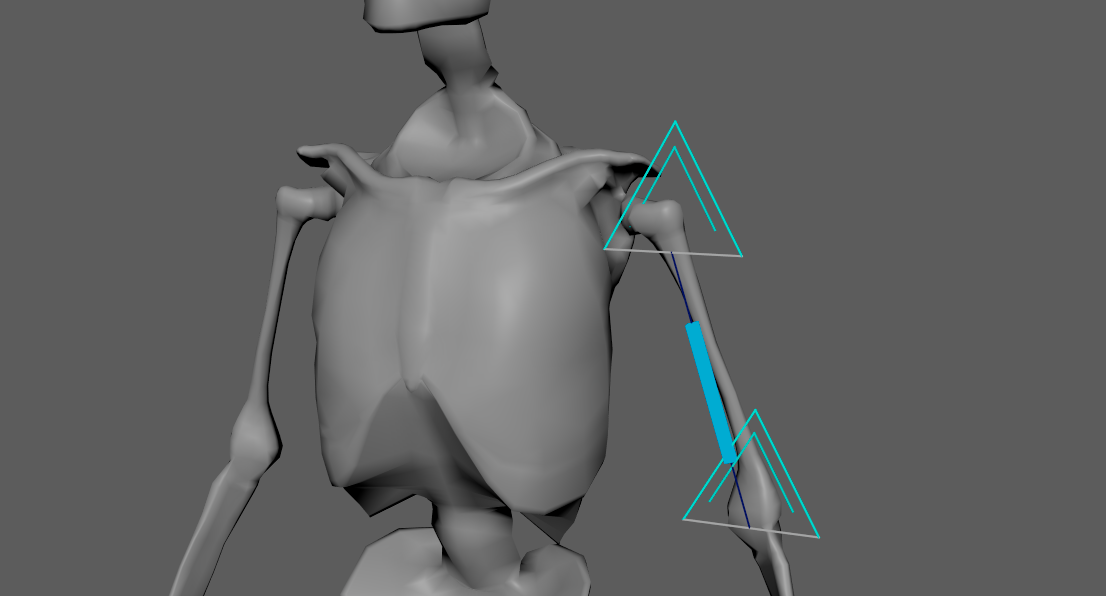

The AdnLocator is an native alternative to Maya locators. This locator can be used to visualize any kind of scene element with a transform node. For example they can be used as inputs to other Adonis locators presented in this page.

¶How To Use

To create an AdnLocator just click on the button in the Adonis shelf. The locator will be created at the origin of your scene.

¶AdnPointLocator

AdnPointLocator is an Adonis locator specifically designed to represent landmarks in the anatomy transfer workflow and to work together with the AdnRadialWrap deformer. These landmarks are used to establish anatomical correspondences between an input geometry and one or more goal geometries, defining how regions of one model relate to regions of another. AdnPointLocator nodes provide a convenient way to visualize landmark positions and identify them in the viewport through labels.

¶How To Use

The recommended workflow is to use the Landmark Tool, which simplifies the creation and management of landmark pairs.

1. Press Landmark Tool in the Adonis menu, under the Tools section.
2. Provide the input and goal geometries.
3. Provide the input and goal wildcard patterns.
4. Press Add Landmark Pair to add a new empty pair of landmarks.
5. Press the button corresponding to the input landmark to create an AdnPointLocator, then position it as desired.
6. Press the button corresponding to the goal landmark to create an AdnPointLocator, then position it as desired.
7. Repeat steps 4 to 6 for as many landmarks as needed.
8. Press Apply to create a new AdnRadialWrap and automatically connect the defined landmarks.

Landmarks must be precisely placed on the surface of their respective geometry. To facilitate this process, the Landmark Tool temporarily sets the corresponding geometry live while performing steps 5 and 6.

The Landmark Tool also handles the naming of AdnPointLocator nodes and automatically assigns the right landmark identifier as a label.

¶Attributes

¶Attribute Editor Template
