¶Neural Training

The Adonis ML Neural Training Tool is a UI wrapper around the Adonis neural training script. It provides a set of parameters to configure and launch the neural training process in Maya.

The tool can be used to train an .adnm model from the input and output data generated by the ML data extraction workflow. It can also use neural cluster data when a neural cluster .json file has been prepared with the Neural Cluster Paint Tool.

The tool can also help manage the training dependencies. If the required machine learning dependencies are missing when the training is launched, the tool prompts the user to install them. The dependencies can also be installed manually from Adonis > Utils > Install ML Dependencies.

¶UI

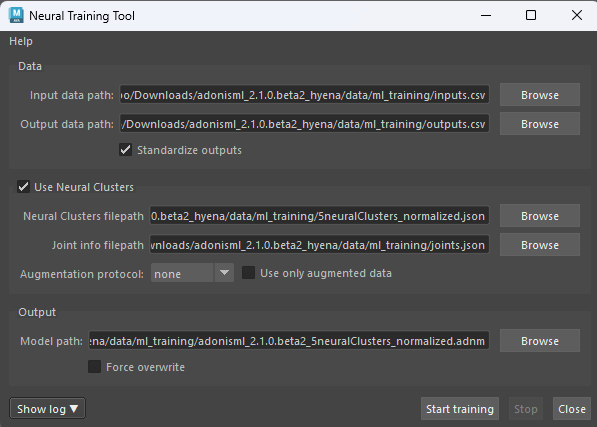

The Neural Training Tool offers an intuitive interface (see Figure 1), allowing users to configure the training settings. Below is a breakdown of the available UI elements:​

¶Data

• Input data path: Path to the input data inputs.csv file exported with Data Extraction. This file is generated by the data extraction process.
• Output data path: Path to the output data outputs.csv file exported with Data Extraction. This file is generated by the data extraction process.
• Standardize outputs: Rescales the output data to a standard normal distribution. This is generally recommended for better training results. If the amount of recorded training poses is low, disabling this option may help improve results for the trained model.

¶Use Neural Clusters

• Use Neural Clusters: Enables training with neural cluster data. When enabled, the neural cluster .json, joint info .json, and augmentation settings are used during training.
• Neural Clusters filepath: Path to the neural cluster .json file containing the cluster data. This file is generated by the Neural Cluster Paint Tool.
• Joint info filepath: Path to the joint info .json file containing the joint information used by the neural cluster training process. This file should be selected from the same dataset folder as the input and output data files generated during data extraction.
• Augmentation protocol: Experimental data augmentation protocol to apply during training. Use only when training without augmentation is not giving good results and the dataset is small. Available options are none, random, and simple. This option uses the neural clusters to generate new synthetic pose data from the training samples. The random protocol generates new synthetic pose data by composing isolated deformed neural clusters with a random sample pose deformation from the dataset. The simple protocol generates new synthetic pose data by composing isolated deformed neural clusters with the rest pose, index 0 dataset sample, deformation. The synthetic poses generated may contain artifacts and may be less aligned to the original simulated silhouette.
• Use only augmented data: Uses only the augmented synthetic data for training, without including the original samples. This option is ignored if no augmentation protocol is selected.

¶Output

• Model path: Path where the trained model file will be saved. The output file must use the .adnm extension.
• Force overwrite: Forces the tool to overwrite the model file if it already exists in the target path. Use with caution, because this will irreversibly delete any existing model file at the target path.

¶Buttons

• Show log: Opens a text area where the output of the training will be prompted (e.g. epochs, average loss, etc).
• Start training: Launches the training process.
• Stop: Interrupts the training process.
• Close: Closes the tool window.

¶Requirements

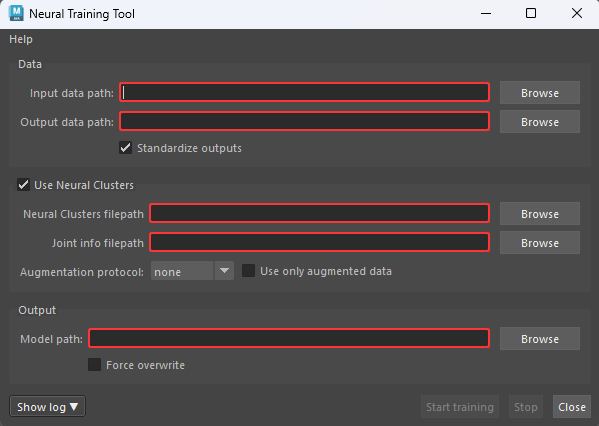

To train a model with the Neural Training Tool, the following files are required:

• Input Data Path: Input data inputs.csv file exported with Data Extraction.
• Output Data Path: Output data outputs.csv file exported with Data Extraction.
• Model Path: Output .adnm model path.

The input and output data files are generated by the data extraction workflow. For more information about generating training data, refer to the Data Extraction Tool documentation.

The output model path must use the .adnm extension.

When training with neural clusters, the following additional files are required:

• Neural Clusters Filepath: Neural cluster .json file generated by the Neural Cluster Paint Tool.
• Joint Info Filepath: Joint information .json file used by the neural cluster training process. This file should be selected from the same dataset folder as the input and output data files generated during data extraction.

¶How To Use

1. Press in the Adonis shelf or Neural Training in the Adonis menu, under the ML Tools section to open the tool UI.

2. Set the input and output data paths.

   Use Input Data Path to specify the input data inputs.csv file exported with Data Extraction.

   Use Output Data Path to specify the output data outputs.csv file exported with Data Extraction.

   These files are generated by the data extraction process. For more information about generating training data, refer to the Data Extraction Tool documentation.

   Enable Standardize Outputs to rescale the output data to a standard normal distribution. This is generally recommended for better training results. If the amount of recorded training poses is low, disabling this option may help improve results for the trained model.

3. Enable neural clusters if needed.

   Enable Use Neural Clusters to train using neural cluster data.

   When this option is enabled, the training process uses the neural cluster .json file and the joint info .json file for optimizing the network architecture.

   Use Neural Clusters Filepath to specify the neural cluster .json file containing the cluster data. This file is generated by the Neural Cluster Paint Tool and describes the painted cluster regions used to provide locality information during training.

   Use Joint Info Filepath to specify the joint info .json file containing the joint information used by the neural cluster training process. This file should be selected from the same dataset folder as the input and output data files generated during data extraction.

4. Configure augmentation if needed.

   Use Augmentation Protocol to apply an experimental data augmentation protocol during training.

   Use this only when training without augmentation is not giving good results and the dataset is small.

   The available augmentation protocols are none, random, and simple. When augmentation is enabled, the tool uses the neural clusters to generate new synthetic pose data from the training samples.

   • random protocol will generate new synthetic pose data by composing isolated deformed neural clusters with a random sample pose deformation from the dataset.
   • simple protocol will generate new synthetic pose data by composing isolated deformed neural clusters with the rest pose, index 0 dataset sample, deformation.

   These generated poses may contain artifacts and may be less aligned to the original simulated silhouette. The use of this option will increase the hardware memory requirements during training.

   Enable Use Only Augmented Data to train only with the augmented synthetic data, without including the original samples.

   Use Only Augmented Data is ignored when Augmentation Protocol is set to none.

5. Set the output model path.

   Use Model Path to specify where the trained model file will be saved.

   The output model path must use the .adnm extension.

   Enable Force Overwrite to overwrite the existing model file if one already exists at the target path. Use this with caution, because the previous model file will be irreversibly deleted.

6. Press Start training to start the process.

7. Install missing dependencies if prompted.

   If the required machine learning dependencies are missing, the tool displays a prompt when Start training is pressed.

   Press OK to install the dependencies from the prompt. This may take a few minutes.

8. Review the training output.

   After training finishes, the .adnm model file is written to the Model Path.

   The tool also generates a <model_name>_log.txt file next to the .adnm model. This log can be used to inspect training progress, epochs, losses, warnings, and errors.

   A <model_name>_config.json file is also generated with the training parameters used for the run. This can be used to review how the model was trained.

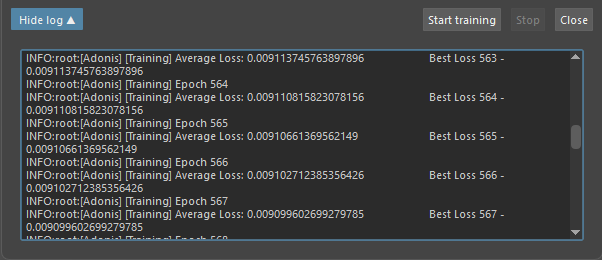

   During or after execution, the Show log button can be pressed to show epoch and average loss information. This is useful for debugging training behavior directly from the tool.

¶Training Dependencies

The Neural Training Tool requires the machine learning dependencies to be installed before training can run. For more information about the ML dependencies installation, please refer to this section on the Installation page.

¶Output Files

After a successful training run, the following files are generated:

• <model_name>.adnm: Trained Adonis neural model file.
• <model_name>_log.txt: Training log file generated next to the .adnm model.
• <model_name>_config.json: Configuration file storing the training parameters used for the run.

The <model_name>_log.txt file can be used to inspect the training process. It contains epoch information, average loss, best loss, warnings, errors, and other training messages.

The <model_name>_config.json file can be used to review the training configuration used to produce the model.

¶Recommendations

• Use data generated by the Data Extraction workflow as the training input and output data.
• Keep the input data, output data, and joint info files together in the same dataset folder.
• Use Standardize Outputs for most training runs.
• Consider disabling Standardize Outputs only when the number of training poses is low and preserving the original output distribution gives better results.
• Use neural clusters when local deformation regions should be isolated during training.
• Use augmentation only when the dataset is small and training without augmentation is not producing good results. However, if possible, recording new data should always be considered first.
• Prefer GPU training when compatible hardware and dependencies are available, because it is usually faster than CPU training.
• Review the generated <model_name>_log.txt file after training to inspect epoch progress and loss values.
• Review the generated <model_name>_config.json file to confirm the training configuration used for the model.
• Avoid neural clusters with large and redundant overlapping regions, because they can reduce training quality.
• Very small datasets may produce lower-quality models, especially when training complex deformations.
• Use Force Overwrite carefully, because it deletes any existing model file at the target path.

¶Troubleshooting

If the training process fails or does not produce the expected result, check the following:

1. Check the log output from the tool by pressing Show log.

   The log can show whether the training process failed and may provide error information. The log can also show epoch progress, average loss, and best loss information, which is useful for debugging training behavior.

2. Check the generated <model_name>_log.txt file.

   The log file is generated next to the .adnm model and contains detailed training information, including epochs, losses, warnings, and errors.

3. Check the generated <model_name>_config.json file.

   The config file records the training parameters used for the run. This can help confirm that the correct paths, neural cluster settings, augmentation settings, and output options were used.

4. Confirm that the ML dependencies are installed.

   If the dependencies are missing, install them from the prompt or from Adonis > Utils > Install ML Dependencies.

5. Confirm that the output path is valid.

   The Model Path must use the .adnm extension. If a model already exists at the target path, enable Force Overwrite only if the existing model can be safely replaced.

6. Confirm that the learning was successful.

   The training process will automatically stop when the predicted outputs stop improving. If the log shows training stopped after a small number of epochs, for example fewer than 100, try recording new data or adjusting the cluster definitions. Datasets that are too small or clusters with too many overlapping regions can be detrimental for learning.

¶Limitations

• Multi-GPU setups are currently not supported and the training will use the first available device.
